The Edge Crush Test (ECT) is a critical evaluation method used to measure the compressive strength of corrugated boxes along their edges. This test determines the box’s ability to withstand stacking pressure, using standardized procedures such as ASTM D7030 or TAPPI T839, during storage and transportation, making it an essential factor for manufacturers producing custom packaging solutions for tangible products. Key factors influencing ECT results include material composition, flute profile, environmental conditions, and the manufacturing process. By understanding ECT values, manufacturers can design cost-effective, reliable packaging solutions tailored to specific needs. The Edge Crush Test (ECT) is a critical evaluation method used to measure the compressive strength of corrugated boxes along their edges. This test determines the box’s ability to withstand stacking pressure, using standardized procedures such as ASTM D7030 or TAPPI T839, during storage and transportation, making it an essential factor for manufacturers producing custom packaging solutions for tangible products. Key factors influencing ECT results include material composition, flute profile, environmental conditions, and the manufacturing process. By understanding ECT values, manufacturers can design cost-effective, reliable packaging solutions tailored to specific needs.
What is the Edge Crush Test?
The Edge Crush Test (ECT) is a standardized procedure that assesses the edgewise compressive strength of corrugated board materials. It measures the force required to crush a sample of corrugated board placed on its edge under controlled conditions. The results are expressed in pounds per inch (lb/in) or kilonewtons per meter (kN/m), providing a quantitative value for the material’s stacking strength.
Core Properties of the Edge Crush Test
The core properties of Edge Crush Trust (ECT) are listed below:
1. Measurement of Edgewise Strength: The ECT evaluates the ability of corrugated board to resist compressive forces applied perpendicular to its flutes.
2. Standardized Testing Procedure: The test follows industry standards such as ASTM D7030 or TAPPI T839, ensuring consistency and reliability in results.
3. Material-Specific Results: The ECT value varies based on the type of corrugated board (e.g., single-wall, double-wall, or triple-wall) and the flute profile (e.g., A, B, C, E).
Dynamic Properties of the Edge Crush Test
The dynamic properties of Edge Crush Trust (ECT) are described below:
1. Impact on Box Design: Higher ECT values allow for thinner board materials while maintaining stacking strength, reducing material costs.
2. Correlation with Box Compression Test (BCT): ECT results are often used to predict the overall box compression strength, enabling manufacturers to design boxes that meet specific load requirements.
3. Environmental Factors: Humidity, temperature, and storage conditions can affect ECT results, highlighting the importance of testing under realistic conditions.
Why is the Edge Crush Test (ECT) Important?
The Edge Crush Test plays a pivotal role in the packaging industry by ensuring the durability and reliability of corrugated boxes. It provides manufacturers with critical data to optimize packaging design, reduce costs, and meet regulatory requirements.
The key reasons why the Edge Crush Test (ECT) is essential are mentioned below:
- Ensuring Product Safety
Corrugated boxes are often used to transport fragile or valuable items. The ECT ensures that these boxes can withstand stacking pressure, preventing product damage during transit or storage.
2. Optimizing Packaging Design
By understanding the ECT values, manufacturers can select the appropriate corrugated board type and flute profile to balance strength and cost-effectiveness. This leads to efficient packaging solutions tailored to specific product needs.
3. Meeting Industry Standards
Regulatory bodies and industry standards often require specific ECT values for certain applications. Compliance with these standards ensures that packaging meets safety and performance criteria.
How is the Edge Crush Test Conducted?
The Edge Crush Test is performed using specialized equipment and follows a standardized procedure to ensure accurate and reproducible results.
Below is a step-by-step overview of the testing process:
Preparation of Test Samples
Corrugated board samples are cut to specific dimensions, typically 2 inches wide and 6 inches long. The edges must be clean and free from defects to ensure accurate results.

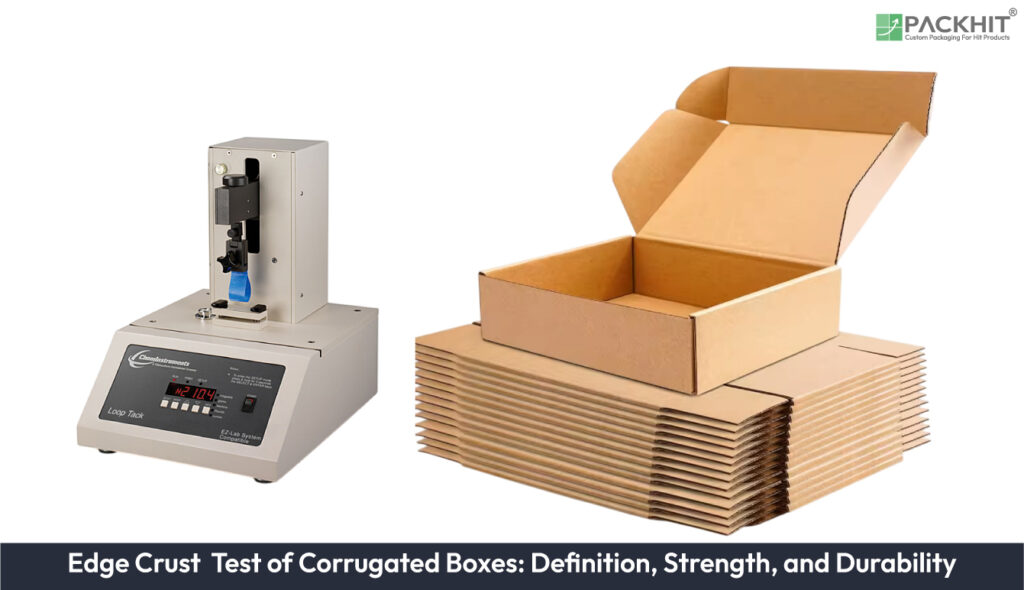

Testing Equipment
The test is conducted using an ECT machine equipped with compression platens. The machine applies a uniform compressive force to the sample’s edge.
Execution of the Test
The sample is placed vertically between the platens, and force is applied until the sample crushes. The maximum force recorded during the test is the ECT value.
Recording and Analysis
The ECT value is recorded and analyzed to determine the material’s suitability for specific packaging applications. Manufacturers often use this data to predict box compression strength and optimize design.
What are the Factors that Affect Edge Crush Test (ECT) results?
Several factors can influence the results of the Edge Crush Test, such as material composition, flute profile, environmental conditions, and manufacturing process, making it essential to consider these variables during testing and analysis.
The four factors that affect the Edge Crush Test (ECT) results are detailed below:
Material Composition
The type of paper used in the corrugated board, including its weight and quality, significantly impacts ECT values. Boards with higher grammage or better-quality paper typically exhibit higher ECT values.
Flute Profile
The flute profile (e.g., A, B, C, E) affects the board’s strength and stiffness. Larger flutes generally provide higher ECT values but may reduce flexibility.
Environmental Conditions
Humidity and temperature can weaken corrugated board materials, leading to lower ECT values. Testing under controlled conditions is essential for accurate results.
Manufacturing Process
The quality of adhesive bonding and the precision of the corrugation process can influence ECT results. Poor manufacturing practices may lead to weaker boards.
Applications of Edge Crush Test Data
The data obtained from the Edge Crush Test is used in various applications within the packaging industry. Below are some of the key uses of the Edge Crush Test:
Designing Custom Packaging
Manufacturers use ECT data to design corrugated boxes that meet specific strength requirements while minimizing material usage and costs.
Predicting Box Compression Strength
ECT values are used in conjunction with formulas to estimate the overall compression strength of corrugated boxes, ensuring they can withstand stacking loads.
Quality Control
Regular ECT testing helps manufacturers maintain consistent quality in their corrugated board materials, ensuring reliable performance in packaging applications.
Compliance with Standards
ECT data is often required to demonstrate compliance with industry standards and regulations, ensuring that packaging meets safety and performance criteria.
